Introduction Take notes for the Obj Orient Analysis Des Prog and write down the knowledge points in each chapter

UML

Use case

The relationship in use case diagram

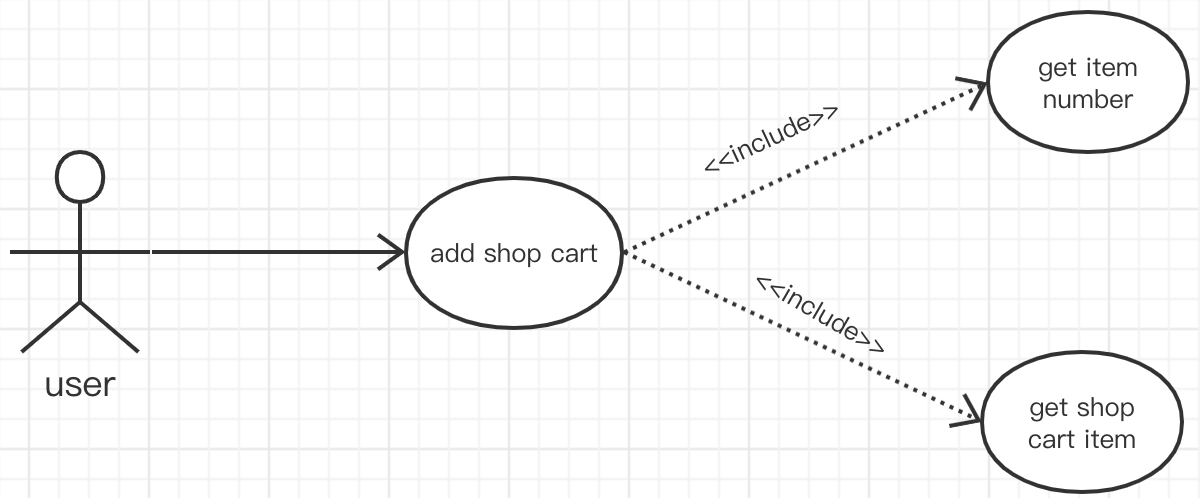

include

Instruction
a case include another case

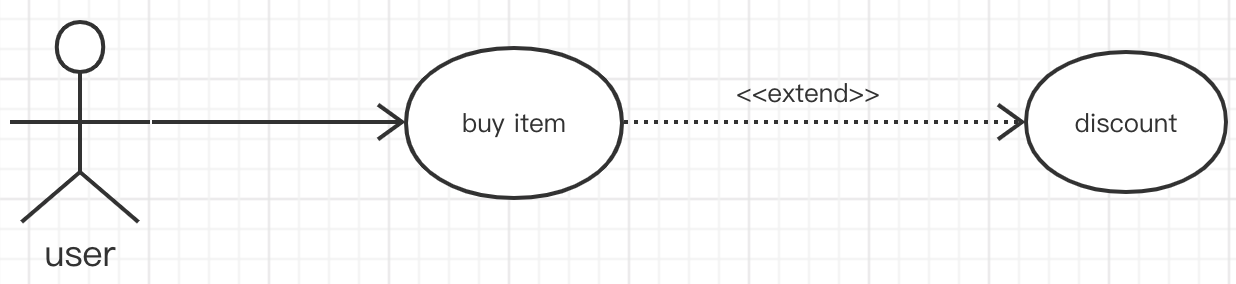

extend

Instruction
the case is optional
it will be excuated under some requirement

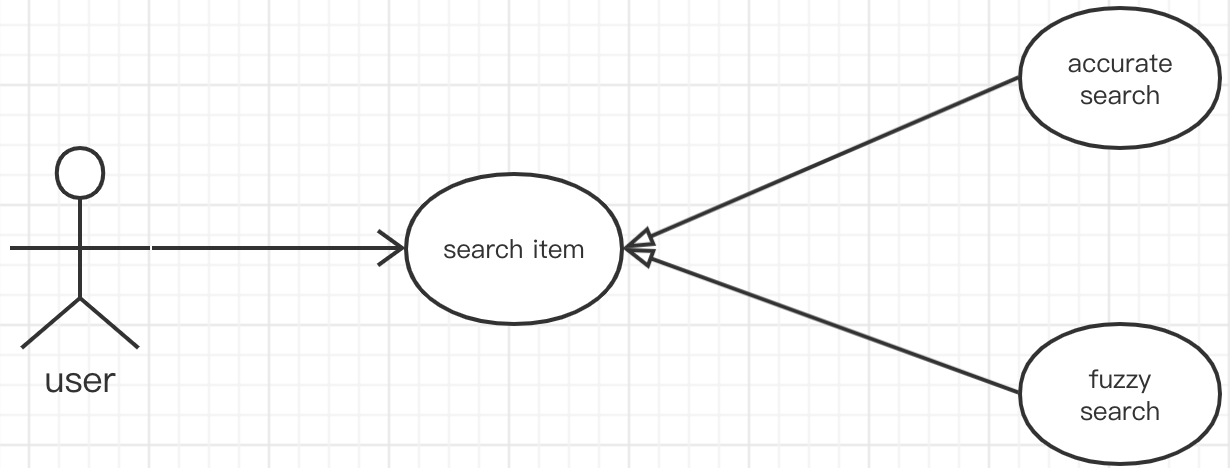

generalization(泛化)

Instruction
fater case and son case
